Modular recycling and processing equipment for waste solar panels

Waste Solar Panel Dismantling / Crushing/(Pyrolysis) / Screening and

Recycling Production Line：

A. Solar Panel Dismantling/Crushing/(Pyrolysis)/Screening and Recycling Equipment: Separates solar

     panels into: glass (separated into complete solar panels and crushed solar panels), silicon powder,

     copper, plastic, etc.

B.Process Principle: Dismantling, Crushing/(Pyrolysis), Screwing

    * Dismantling/Removal: Removes the aluminum frame and junction box; removes the PVDF plastic

       from the back panel, then removes the EVA adhesive, thus dismantling the following: glass panel,

       solar cells, copper conductive strip, and back panel PVDF plastic film.

    *  The panel glass can be reused or crushed (pyrolyzed); the silicon in the solar wafers, the metal

        resources (copper, lead, tin, silver) in the copper conductive strip, the aluminum metal in the aluminum

        frame, the copper metal in the junction box, and the PP plastic are all valuable recyclable materials.

C. Processing Capacity: 200 ~ 1,000 Kg/Hr, recycling rate exceeding 85%

D. Equipment Selection: Differentiated between intact and broken solar panels

E. Basic Equipment: Junction box remover, frame remover, glass separator, sorter (glass/other)

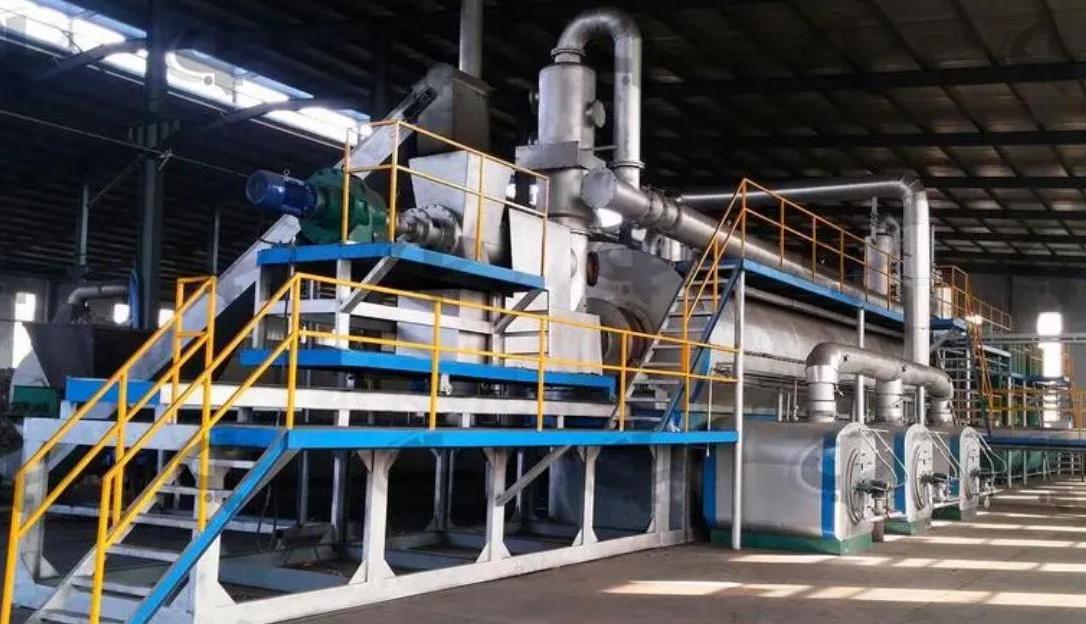

F. Optional Equipment: Single-shaft shredder, crusher, carbonization furnace (pyrolysis furnace),

    baffle separator, electrostatic separator

G. Air Pollution Control Equipment: Pulse dust collector and other flue gas treatment equipment

    (Option)
