Ceramic/Metal Flameless Radiant Burner Product Description

* Applicable Areas: This product offers uniform heat distribution, low NOx emissions, and rapid load response; therefore,

   it is widely applicable to -- burner premixing, stable combustion distribution,

* Radiant heat and "flameless" combustion, such as：

   A. Heating "brittle fluids," such as asphalt and organic synthetic heat transfer fluids.

   B.Semiconductor processes (Solar/CED/Thin Film…), such as VOCs 、AsH₃、AsCl₃、SiH₄、SiF₃

  * "Flameless combustion" is the main advantage of this product. Its high surface area of

      ceramic fibers promotes a rapid combustion reaction, thus eliminating the visible flame.

      The product surface emits an orange glow at approximately 2000°F, and its radiative heat

      transfer is exceptional.

  * This product is suitable for use with heat exchangers because the flame will not impact the

      heat exchanger. Depending on the application, the total surface heat flux ranges from 20,000

      to 150,000 Btu/hr-ft².For certain difficult-to-decompose compounds (VOCs / AsH₃ / AsCl₃ /

      SiH₄ / SiF₃ etc.), a decomposition rate of up to 99.999% has been demonstrated. Oxidation

      performance can be further improved by rotating the burner "from the inside out," allowing

      the fluid to penetrate the cylindrical surface from the outside in.

Porous Ceramic Sleeve Specifications

Basic Specifications：Various Models (Multiple Sizes / 800/1000/1200℃)

                         Customized products can be provided based on the customer's production line

                         characteristics, with different sizes and operating temperatures.

* Modular Water Recycling System

  - The design utilizes a Membrane BioReactor (MBR) system, which offers advantages such as

     high biochemical efficiency, strong resistance to load shocks, stable effluent quality, small

     footprint, long sludge removal cycle, and ease of automatic control.

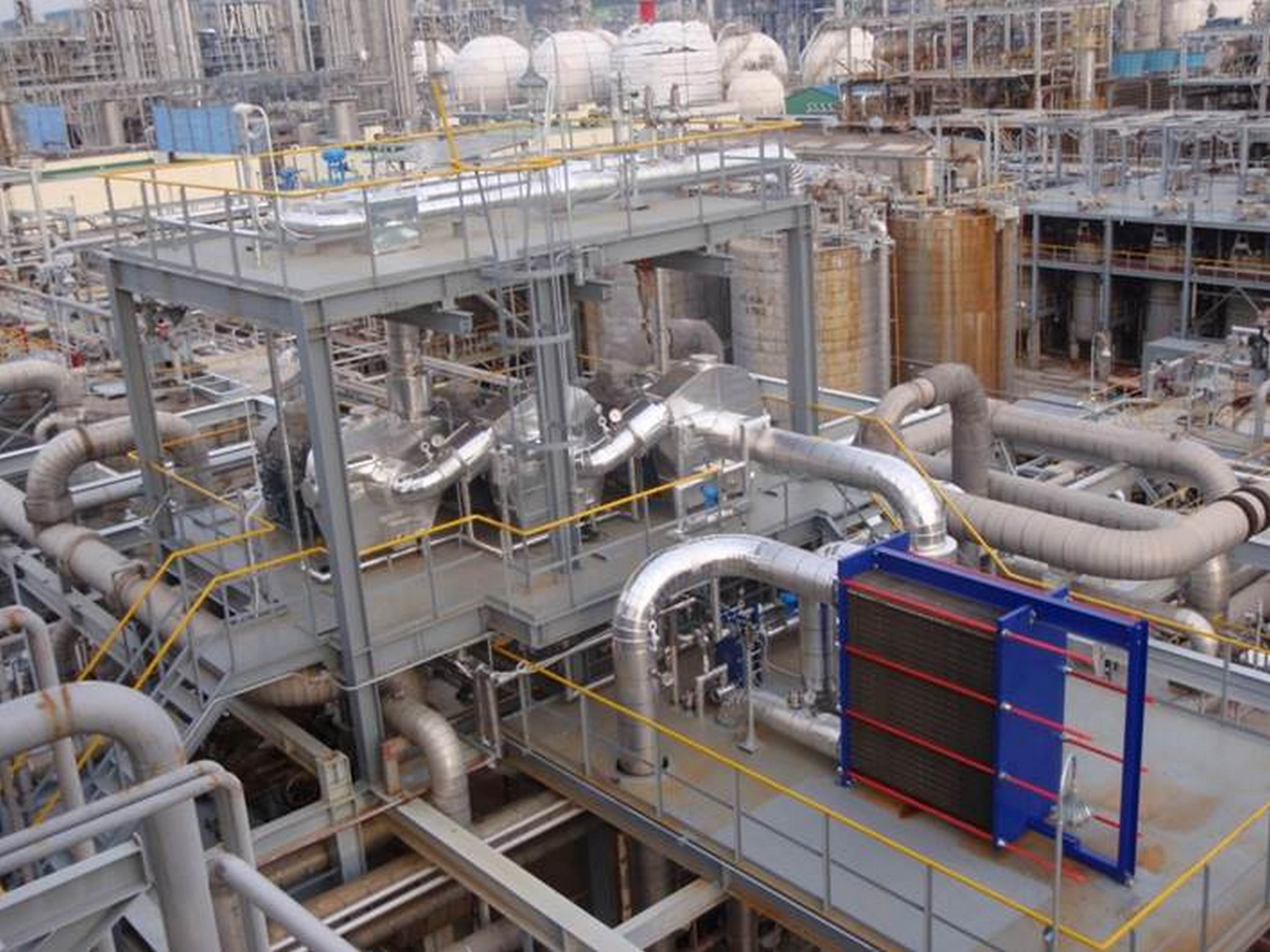

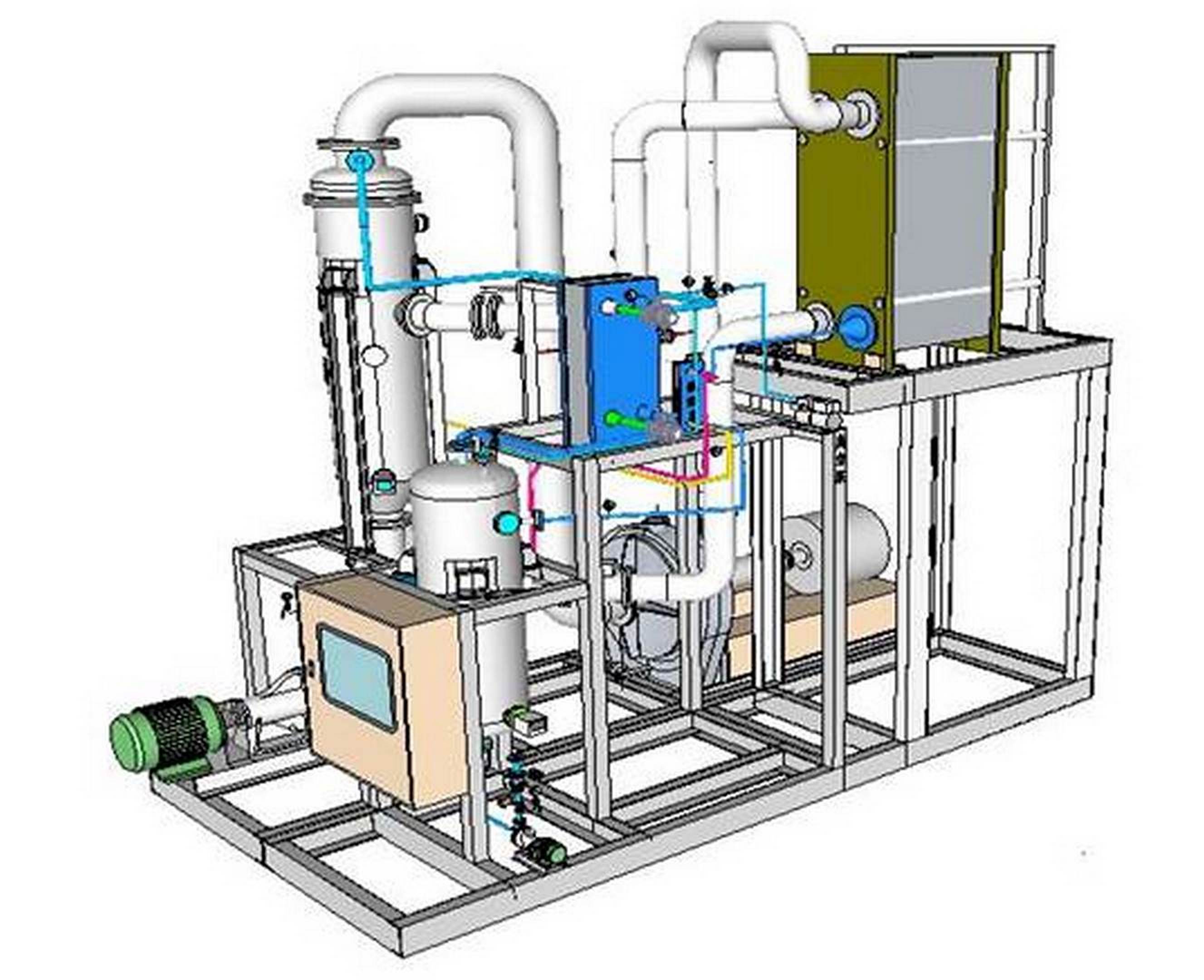

* Modular MVR (Drying & Concentration) System :

  - Applications: Beverage industry, food additive industry, pharmaceutical industry, chemical in

    dustry, wastewater treatment, etc.

  - Technical Advantages：

        1. Low energy consumption (recycles latent heat of secondary steam, no need for cooling

            circulating water)

        2. Effectively concentrates heat-sensitive materials (low-temperature operation)

        3. Compact structure, stable system, high degree of automation

4. Building a cross-border equipment trade service platform (high-efficiency, energy-saving,

     and water-saving modular automatic car wash machine/modular mobile modular house)

* High-efficiency, energy-saving, and water-saving modular automatic car wash: Through

   intelligent sensing and segmented modular design, it significantly reduces water and power

   consumption.

* While maintaining high-quality car wash results. Built-in high-efficiency physical and

   chemical filtration and recycling units allow for the reuse of car wash wastewater, with a

   water recovery rate exceeding 85%. This enables fleet management, gas station, and parking

   lot operators to easily implement stable and cost-effective automatic car wash solutions while

   ensuring environmental protection and ESG compliance.

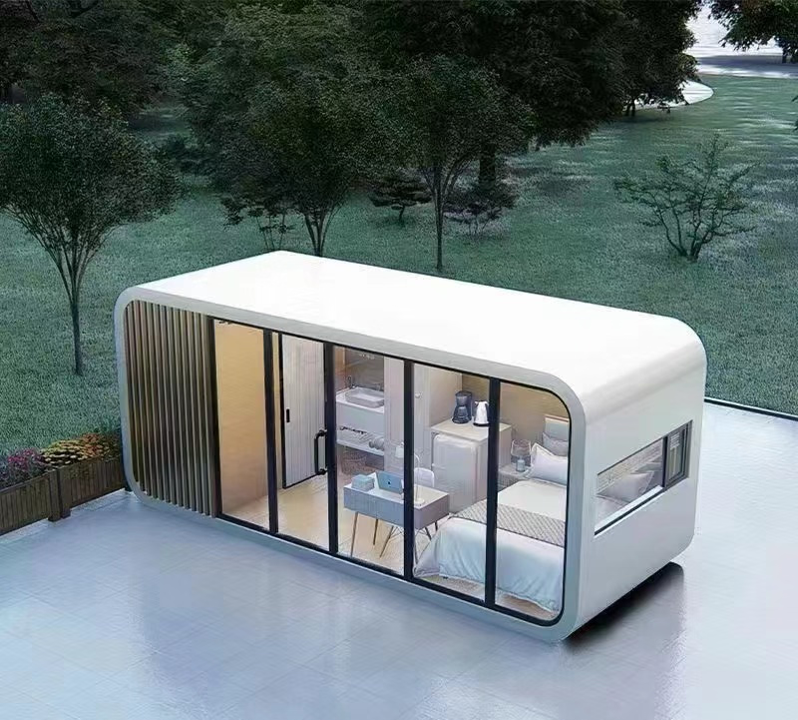

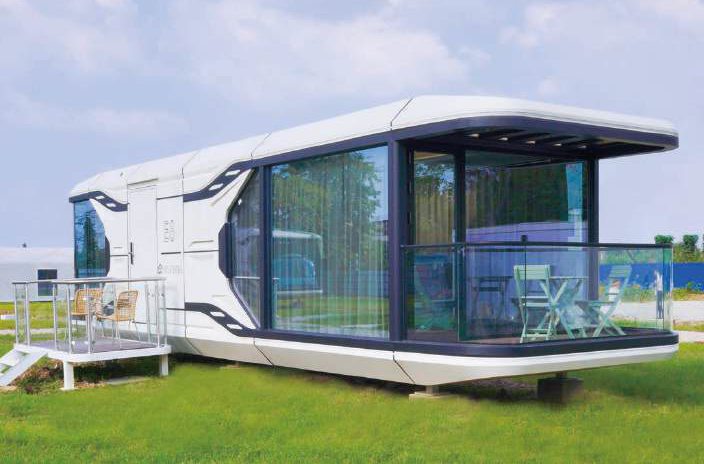

* Modular, mobile, self-sufficient modular homes integrate rooftop solar power generation,

   a self-generated water purification system, and a wastewater treatment and recycling system,

   creating an independent living space independent of mains electricity, tap water, and sewage

   systems.

* Lightweight structure and rapid assembly design allow for flexible configuration of bedroom,

   office, and storage modules according to site requirements. Suitable for campsites, temporary

   construction site offices, rural shelters, and emergency disaster relief, providing you with a

   safe, comfortable, environmentally friendly, and mobile smart living solution anywhere.
